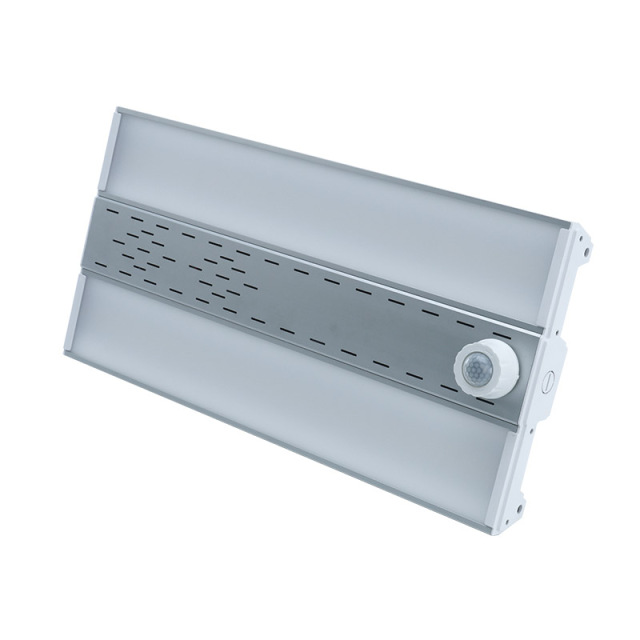

HBF SERIES LED LINEAR HIGHBAY

CTT & Watt Selectable、183lm/W 、Small Size FY F series led linear high bay use aluminum housing for good heat disspation, support high watiage with small size; And provide high output illumination for various commercial and industrial applications.

Size

350mm / 400mm / 600mm / 900mm / 1200mm

Power

100W / 125W / 150W / 200W / 300W / 400W

Lumen Efficacy

150 lm/w & 183 lm/w

Description

Model	FY-HB-350F-100W	FY-HB-450F-125W	FY-HB-450F-150W	FY-HB-600F-200W	FY-HB-900F-300W	FY-HB-1200F-400W
Power	100W	125W	150W	200W	300W	400W
Lumen	15000lm	18750lm	22500lm	30000lm	45000lm	60000lm
Lumen efficacy	150 lm/w（183lm/w for option）
Input Voltage	AC120-277V/ AC120-347V/AC200-480V , 50/60HZ
Power factor	>0.95
Working temperature	-30℃~45℃
Color temperature	3000K-6500K
Beam angle	120°
CRI	Ra>80
Housing color	Aluminum
Lifespan	>50.000 hours@L70
Fixture dimension	35029454mm	40029454mm		60029454mm	90029454mm	120029454mm

Modular Design Suitable For Various Styles of Grow Racks

The modular design of the RBD series with configurable mechanical and electrical systems provides unprecedented design flexibility for small to large vertical farms. Suitable for different types of vegetables including leafy greens, micro greens, herbs and others, also suitable for propagation and full cycle cultivation.

Flexible Mounting

A variety of mounting accessories and plug-and-play cables are available. The height can be adjusted freely to get closer to the plants. The freely customizable light bar spacing ensures seamless integration into various vertical brackets. Each individual light bar and all mounting accessories are field replaceable, reducing maintenance and costs for growers.

IP 66 Waterproof Rating

RBD series is with a protective lens to ensure LED protection when you’re irrigating. The smooth surface design avoids the accumulation of dust on the fixture and is easier to clean. Better heat dissipation design, can be closer to plants.

Market-leading Efficacy

3.0µmol/J efficacy, Greater efficiency for shorter harvest periods, increased efficiency, reduced energy consumption, and increased revenue.
