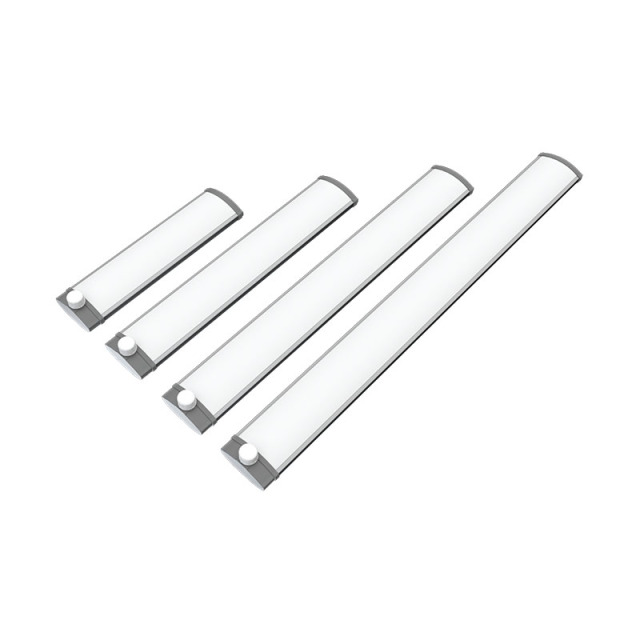

HBG SERIES IP65 LED LINEAR HIGHBAY

CTT & Watt Selectable、90 Mins Emergency                                                                                   FY led linear highbay is with smooth aluminum heat sink, widely used for industrial application and harsh environment, like garbage station factory, warehouse, Exhibition hall, retail box stores and so on.
Size
931mm / 1231mm / 1531mm
Power
85W / 135W / 180W / 200W / 220W / 240W
Lumen Efficacy
160 lm/w
  • HBG SERIES IP65 LED LINEAR HIGHBAY
  • HBG SERIES IP65 LED LINEAR HIGHBAY
  • HBG SERIES IP65 LED LINEAR HIGHBAY
Description
Model FY-HB-900G-085 FY-HB-900G-135 FY-HB-900G-180 FY-HB-1200G-200 FY-HB-1200G-220 FY-HB-1500G-240
Power 85W 135W 180W 200W 220W 240W
Lumen 13600lm 21600lm 28800lm 3200lm 35200lm 38400lm
Lumen efficacy 160 lm/w
Input Voltage AC120-277V/ AC120-347V/AC200-480V , 50/60HZ
Power factor >0.95
Working temperature -30℃~45℃
Color temperature 3000K-6500K
Beam angle   60° / 90° / 120°
CRI Ra>80
Housing color Aluminum
Lifespan >50.000 hours@L70
Fixture dimension 931*165*116.6mm 1231*165*116.6mm 1531*165*116.6mm
Modular Design Suitable For Various Styles of Grow Racks
The modular design of the RBD series with configurable mechanical and electrical systems provides unprecedented design flexibility for small to large vertical farms. Suitable for different types of vegetables including leafy greens, micro greens, herbs and others, also suitable for propagation and full cycle cultivation.
Flexible Mounting
A variety of mounting accessories and plug-and-play cables are available. The height can be adjusted freely to get closer to the plants. The freely customizable light bar spacing ensures seamless integration into various vertical brackets. Each individual light bar and all mounting accessories are field replaceable, reducing maintenance and costs for growers.
IP 66 Waterproof Rating
RBD series is with a protective lens to ensure LED protection when you’re irrigating. The smooth surface design avoids the accumulation of dust on the fixture and is easier to clean. Better heat dissipation design, can be closer to plants.
Market-leading Efficacy
3.0µmol/J efficacy, Greater efficiency for shorter harvest periods, increased efficiency, reduced energy consumption, and increased revenue.
